Technical Audio Devices Laboratories, Inc. (TAD) has officially announced the launch of its latest innovation, the TAD-ME1TX bookshelf speaker system, which joins the esteemed Evolution Series of high-fidelity speakers. This new model is set to replace the critically acclaimed TAD-ME1, originally introduced in 2016, and promises to deliver an even more refined audio experience.
The TAD-ME1TX incorporates a range of enhancements designed to elevate audio performance to new heights. One of the standout features is its Coherent Source Transducer (CST) driver, which now includes a tweeter with a beryllium diaphragm. This diaphragm is crafted using TAD’s proprietary vapor-deposition technique, a technology typically reserved for their higher-end models. Additionally, the TAD-ME1TX retains the proven Bidirectional Aero-Dynamic Slot (ADS) port design from its predecessor, ensuring a rich and dynamic sound.
Key Features of the TAD-ME1TX
- CST Driver for Superior Sound
At the heart of the TAD-ME1TX is a 9 cm CST driver, which provides an ideal single-point-source sound experience. This driver is meticulously engineered to control directivity across an extended frequency range, achieving clear imaging and natural sound reproduction. Covering frequencies from 420 Hz to 60 kHz, the CST driver excels in maintaining phase alignment and directivity across all bands. - Advanced Beryllium Tweeter
The newly developed 25 mm beryllium diaphragm tweeter is a highlight of the TAD-ME1TX. This lightweight yet rigid component is designed using the Harmonized Synthetic Diaphragm Optimum Method (HSDOM), allowing for precise control over vibrations and piston motions, and facilitating wide-range sound reproduction up to 60 kHz. - Innovative Magnesium Midrange
The midrange driver features a newly developed magnesium diaphragm that combines lightweight construction with high internal loss properties. Anodization and surface coatings enhance hardness and internal loss, resulting in clear and distortion-free midrange reproduction. The redesigned frame basket also contributes to improved structural strength and sound wave propagation. - MACC Diaphragm Woofer
The 16 cm woofer utilizes a Multi-layered Aramid Composite Cone (MACC) diaphragm, which is engineered to deliver a clear and rich low-frequency sound. The integration of a refined Linear Drive Magnet Circuit (LDMC) and a foamed polycarbonate surround ensures outstanding linearity and deep, responsive bass.
- SILENT Enclosure Technology
The TAD-ME1TX is housed in a SILENT (Structurally Inert Laminated Enclosure Technology) enclosure that combines birch plywood braces with medium-density fiberboard (MDF) panels for exceptional structural integrity and vibration dampening. Additional 5 mm-thick steel panels further minimize cabinet vibrations, while carefully selected acoustic absorbents eliminate standing waves that could detract from sound quality. - Bidirectional ADS Port Design
Maintaining the design legacy of its predecessor, the TAD-ME1TX features a Bidirectional Aero-Dynamic Slot (ADS) port design. This innovative approach minimizes port noise and enhances bass response by symmetrically placing port openings to cancel out vibrations, resulting in rich and natural bass. - Stylish Color Variants
The TAD-ME1TX is available in two elegant color finishes—classic black and a new silver white option—allowing customers to select a style that complements their home decor. Each enclosure is meticulously finished by skilled artisans to ensure a high-quality appearance, complete with non-slip pads, a cleaning cloth, and a minimally invasive woofer grille. - Specialized Matching Speaker Stands

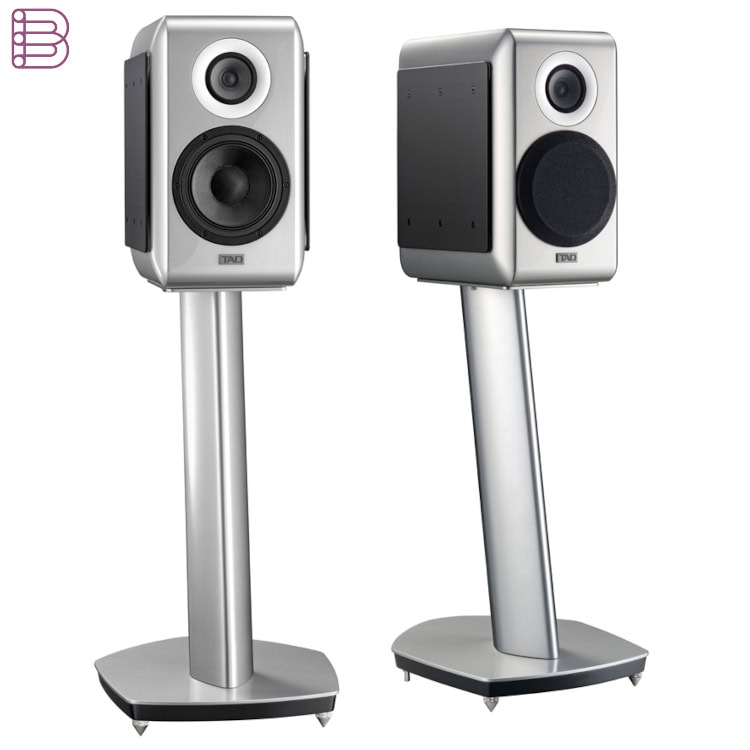

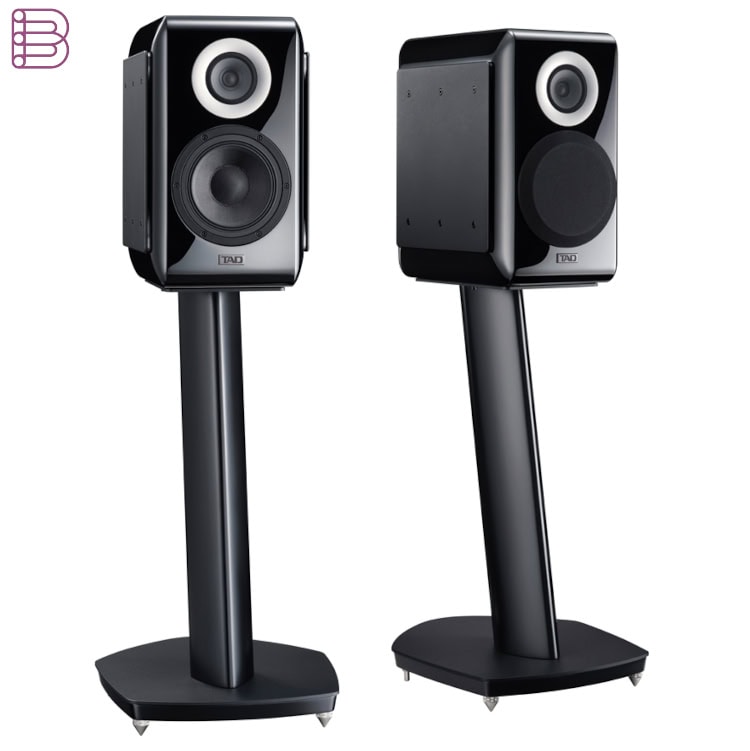

To maximize the performance of the TAD-ME1TX, matching speaker stands (TAD-ST3TX-K and TAD-ST3TX-SW) are available for purchase in pairs. These stands are designed to minimize sound reflection and diffraction, enhancing audio clarity while providing superior structural strength.
With the release of the TAD-ME1TX, Technical Audio Devices Laboratories, Inc. continues to set a high standard in the world of high-fidelity audio, combining cutting-edge technology with elegant design to deliver an unparalleled listening experience.
