TAD Reference One Loudspeakers

Editorial Staff by Editorial Staff
March 1, 2022
Reading Time: 2 mins read
0
TAD-reference-series-loudspeakers

RELATED POSTS

Purifi SPK16 reference design

Dan D’Agostino Relentless 800 mono power amplifiers

Audio Technica ATH-TWX9

The TAD Reference One is an Ultra high end speaker system based on highly advanced technology developed by TAD (Technical Audio Devices), creators of studio monitors favored by leading sound studios around the world. It employs carefully selected materials and parts, and benefits from scrupulous, even relentless, attention to detail, backed by our design theory and testing ability.

TAD-reference-series-loudspeakers-3

CST Driver Unit

The CST (Coherent Source Transducer) makes it able to reproduce with controlled directivity over a wide range, from a single point with uniform phase. The design of the midrange cone is based on detailed calculations, so not only does it have superior acoustic characteristics, but it also controls the directivity performance of the tweeter due to the concentric configuration. This unifies the acoustic center of the tweeter and midrange, and reconciles the phase and directional characteristics through the crossover range.

TAD-reference-series-loudspeakers-1

The tweeter dome and midrange cone are made of beryllium, the lightest and most rigid of metals, which makes it a superior diaphragm material, and one which boasts a history of more than 30 years of TAD achievements.

In order to correctly reproduce signal waveforms, especially at high excursions, we developed the short voice coil OFGMS (Optimized Field Geometry Magnet Structure) magnetic circuit.

Advanced Computer Analyses

TAD-reference-series-loudspeakers-2

The suspension components in the TAD Reference One bass driver are a combination of optimum shapes and materials calculated by using the most advanced computer simulation techniques. In particular, the bass driver is equipped with high performance dual spiders that ensure consistent, stable operation with low distortion even during continuous high amplitude input. For the surround, which can also significantly impact sound quality, we chose the corrugated type as used in our professional TAD Drivers. Just as with the spider, this type of surround supports the cone during large excursions, allowing accurate and stable motion. This is the foundation of the TAD Reference One sound: extremely deep, clear bass that reveals the full sense of scale and impact of the music.

Tags: LoudspeakersTAD
Editorial Staff

Editorial Staff

An exceptional collection of pencils, pens and keyboards, all equally possessed by audio and video. In some dark den, hidden from all women, our editorial staff write and type about their infinite love of the audiovisual. Please, have some compassion!

Related Posts

purifi-spk16-reference-design
Loudspeakers

Purifi SPK16 reference design

June 29, 2023
dan-dagostino-relentless-800-mono-power-amplifiers
Amplifiers

Dan D’Agostino Relentless 800 mono power amplifiers

June 19, 2023
audiotechnica-athtwx9
Headphones

Audio Technica ATH-TWX9

March 14, 2023
mcintosh-mda200-dac
Digital sources

McIntosh MDA200 DAC

March 14, 2023
focal-k2-power-m-line
Car audio

Focal K2 Power M line

March 13, 2023
silent-angel-bonn-nx-network-switch
Digital sources

Silent Angel Bonn NX network switch

March 13, 2023
Next Post
trafomatic-audio-elysium-amplifier

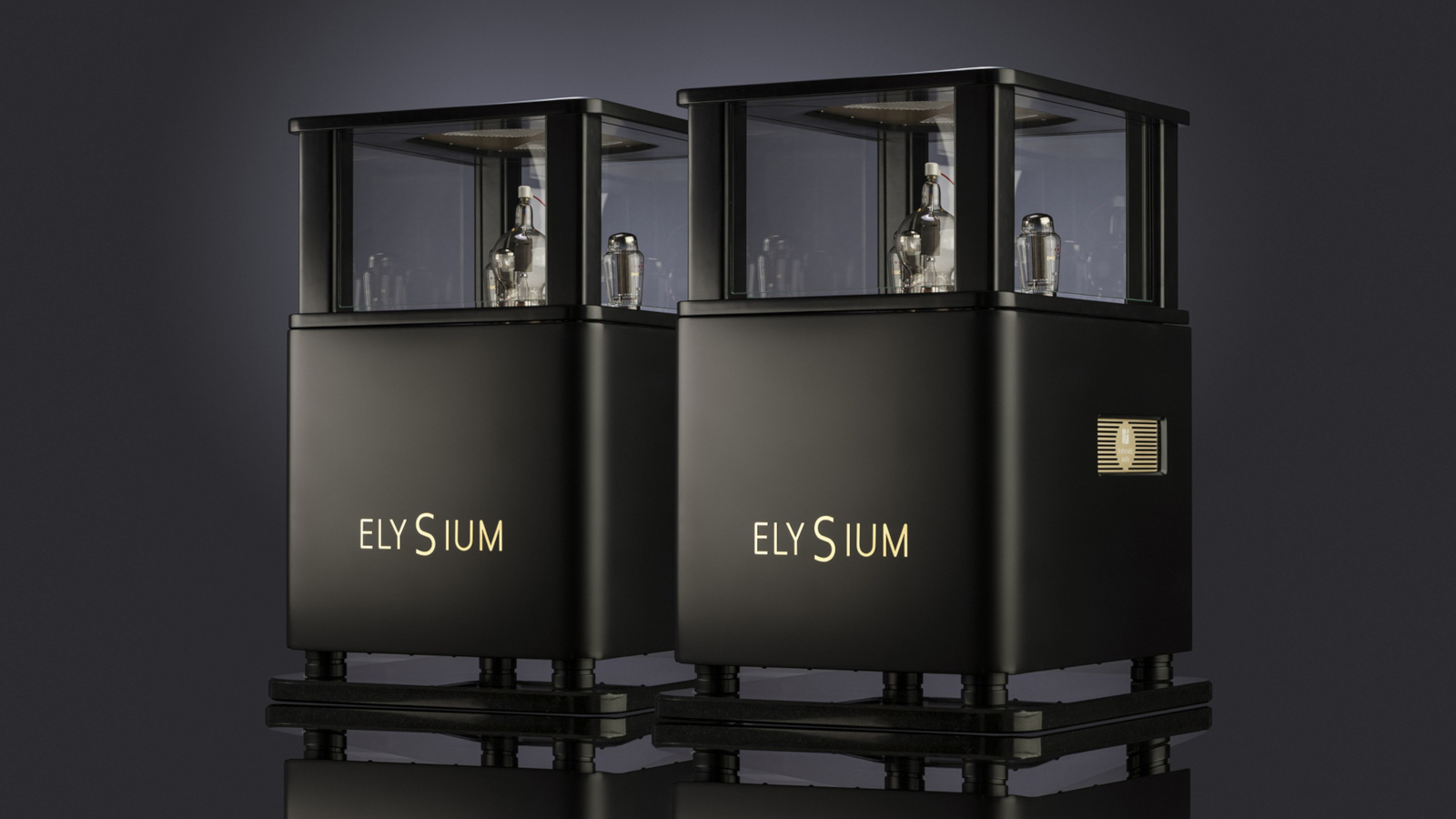

Trafomatic Audio Elysium Mono Power Amplifier
