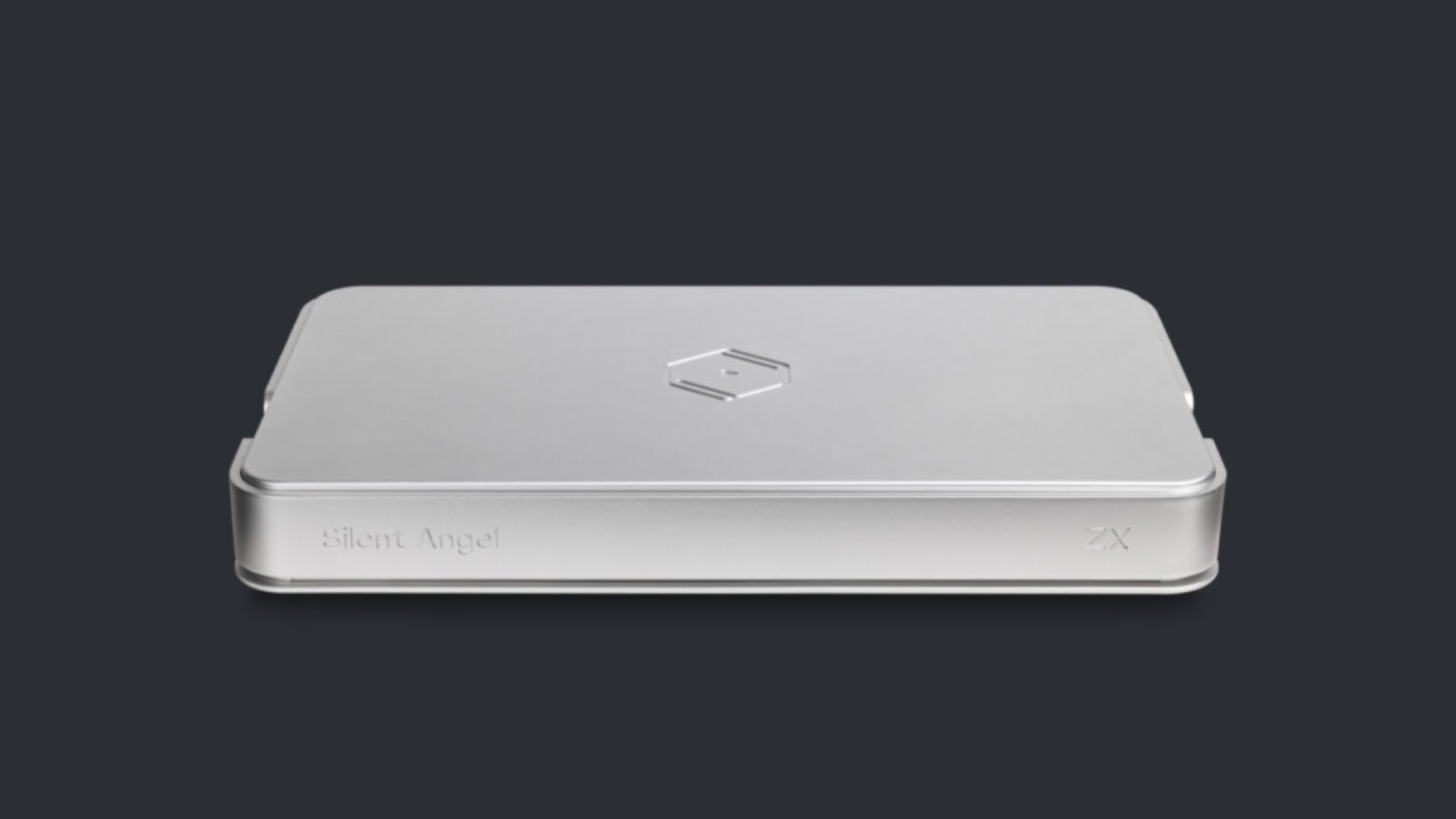

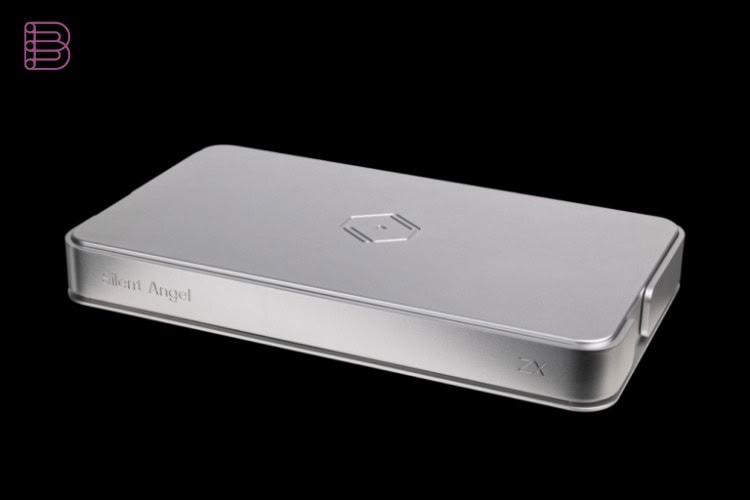

The Silent Angel Rhein ZX is a new flagship digital music hub that combines a built-in Roon Core server, a studio-grade master clock and a fanless, dual NVMe SSD storage architecture in a single component. The Silent Angel Rhein ZX sits above the brand’s existing Rhein Z1 line as its most ambitious network music server to date, aimed at listeners who want a single box to replace a NAS, a Roon server and an outboard streamer/DAC transport.
Silent Angel Rhein ZX: Nine Core Technologies
Silent Angel builds the Rhein ZX around what it calls nine core technologies, including its proprietary VitOS operating system, an octa-core processor, an OCXO precision clock, physically isolated dual LAN ports and native Roon Server support. Processing on the Silent Angel Rhein ZX comes from an Intel Core i5-12450H, an 8-core/12-thread chip built on a 10nm process with a 2.0GHz base and 4.4GHz turbo frequency, paired with 16GB, 32GB or 64GB of DDR4 memory depending on configuration. Silent Angel says that processing headroom is there specifically to handle real-time upsampling and transcoding for large, high-resolution libraries without taxing the system.
Built for Quiet, Precise Digital Transport

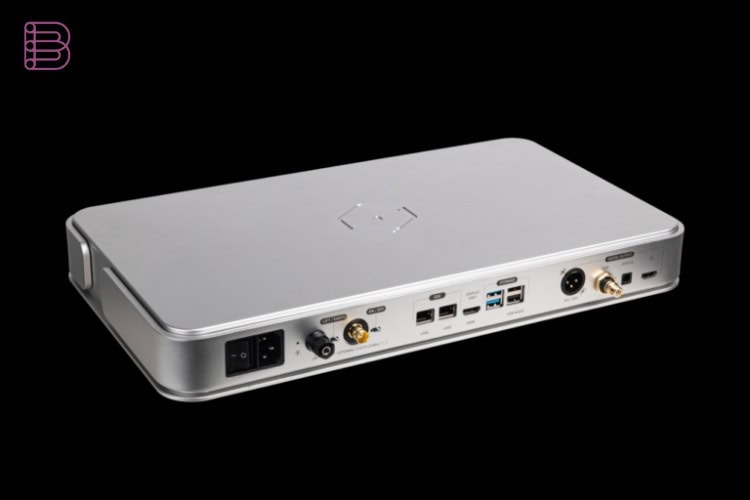

A ±0.05 ppm studio-grade OCXO master clock anchors timing accuracy, while an AC linear power supply and a custom power matrix keep noise away from the audio circuitry. The Rhein ZX is entirely fanless, relying on a CNC-machined pure copper heatsink and the aluminium chassis itself to dissipate heat. Digital outputs cover coaxial, AES/EBU, optical and I2S, alongside USB DAC output, with support up to DSD512 and PCM 768kHz/32-bit across most of those paths via the XMOS XU316 USB audio processor.
Pricing and availability
Silent Angel has not yet published pricing or a firm release date for the Silent Angel Rhein ZX; the product page currently notes that its companion VitOS Orbiter app experience is “coming soon.” The Rhein ZX is shown in a Silver finish, with a 6061 aluminium, dual-layer 5mm chassis, and ships with a power cord, an Ethernet cable, a user manual and a warranty card.
Key specifications
- Processor: Intel Core i5-12450H, 8-core/12-thread, 10nm, up to 4.4GHz turbo
- Memory: DDR4 16GB / 32GB / 64GB
- Storage: 500GB built-in NVMe SSD + expandable up to 8TB via M.2 NVMe bay
- Clock: ±0.05 ppm studio-grade OCXO master clock
- USB audio processor: XMOS XU316
- Digital outputs: Coaxial, AES/EBU, Optical, I2S (HDMI), USB DAC
- Resolution support: up to DSD512, PCM 768kHz/32-bit
- Networking: dual physically isolated Gigabit Ethernet ports
- Streaming: built-in Roon Core, TIDAL, Qobuz, QQ Music, Spotify Connect, Amazon Music
- Multi-room: up to 10 concurrent endpoints
- Dimensions: 439 x 63 x 250mm; Weight: 9.4kg
The Silent Angel Rhein ZX also introduces a dual-mode grounding system, letting owners switch between grounded and floating modes to cut mains-frequency hum in complex, multi-component racks, alongside a dual-redundant firmware design intended to prevent update-related system failures. Silent Angel already has an established line-up on bestofhighend.com, including the Munich MU streamer, and the Rhein ZX is positioned as the top of that range, aimed squarely at owners building a dedicated digital front end around Roon.
Full specifications and further detail on the Silent Angel Rhein ZX are available on the brand’s official product page.
