In 2023, Magico unveiled the groundbreaking S-Series, with the S3 setting a new benchmark in loudspeaker design. Celebrating its 20th anniversary in 2024, Magico introduces the S5, a flagship model that builds on the S3’s legacy while pushing performance boundaries further. The S-Series, including the S2, S-Sub, and SCC center channel, showcases Magico’s relentless pursuit of sonic perfection through cutting-edge technology, innovative enclosure design, and advanced driver systems. This article explores the S-Series’ design philosophy, technological advancements, and unparalleled performance.
S5 2024: The Pinnacle of the S-Series

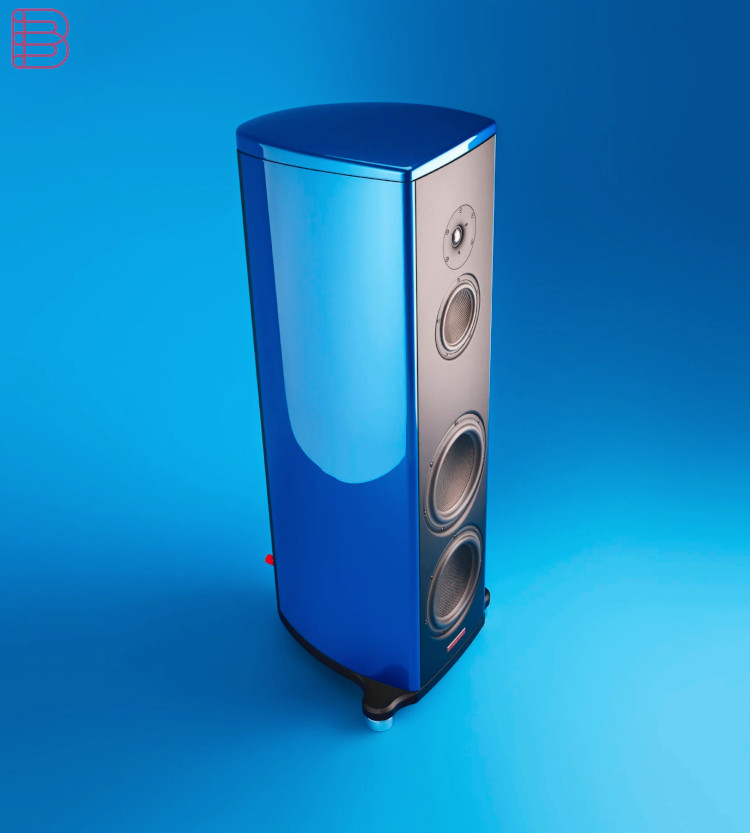

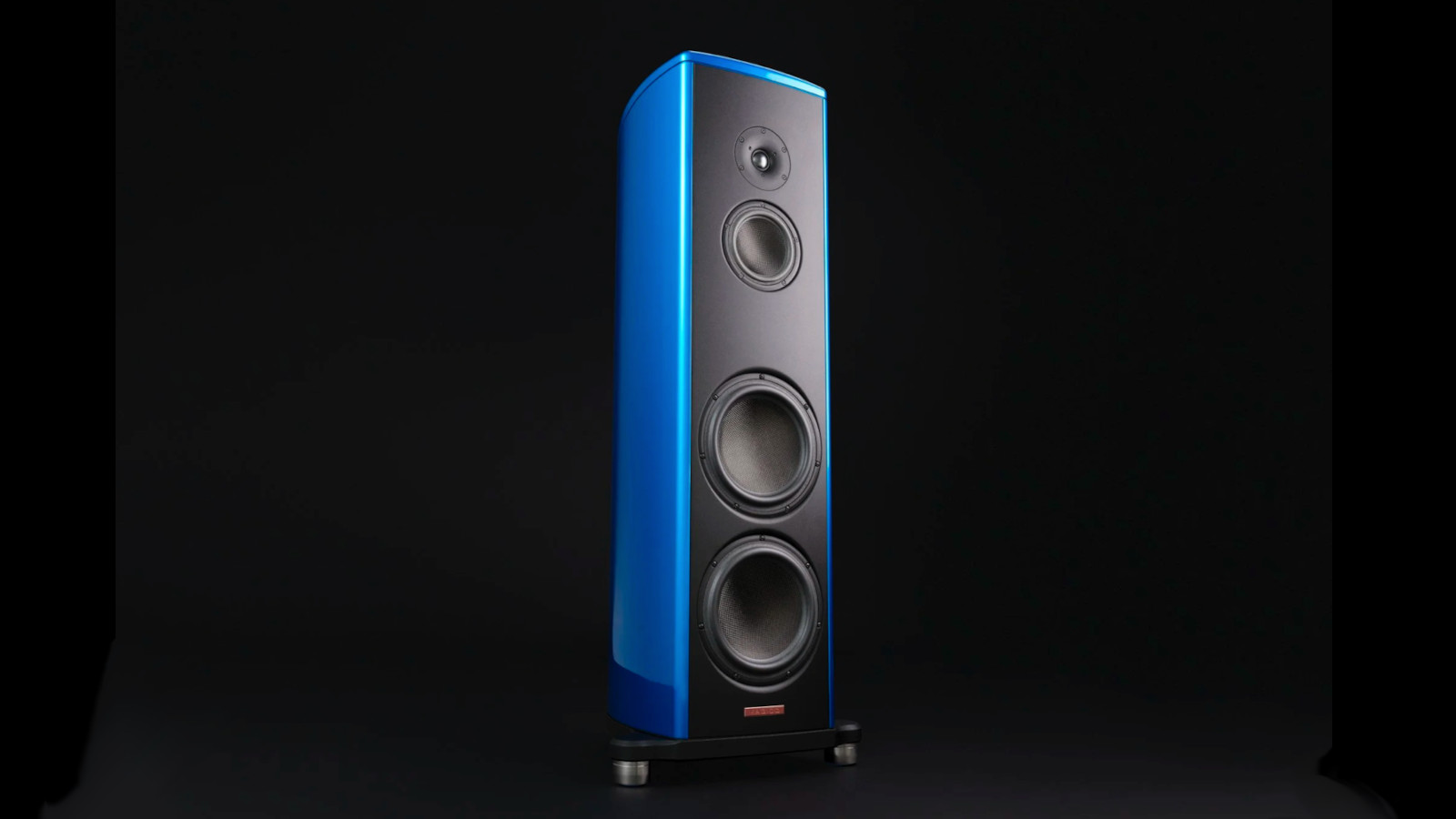

The S5 loudspeaker is a testament to Magico’s commitment to advancing audio engineering. Larger than its predecessors, the S5 delivers a wider performance envelope while retaining the elegance synonymous with the S-Series.
Design and Engineering
Magico employed state-of-the-art tools like the Polytec Laser Vibrometer to measure minute cabinet vibrations, ensuring the S5’s enclosure adds no coloration to the sound. The Klippel Near-Field Scanner (NFS) provided a comprehensive 3D acoustic analysis, capturing on- and off-axis responses without an anechoic chamber. This data allowed Magico to refine the S5’s acoustic response, bringing it closer to the theoretical ideal for multi-way loudspeakers.
Enclosure
The S5’s enclosure is a marvel of engineering, constructed from four extruded aluminum panels ranging from ½-inch to 2-inches thick. The edgeless front baffle, curved top plate, and substantial baseplate with a 3-point outrigger system minimize diffraction, reduce vertical standing waves, and enhance stability. Magico’s in-house 3D laser interferometry measured up to 1,000 points per panel, reducing enclosure resonance by 30% compared to its predecessor, resulting in a lower noise floor and heightened dynamics.
Drivers
The S5 incorporates Magico’s Gen 8 Nano-Tec driver cones, featuring an aluminum-honeycomb core with graphene-reinforced carbon-fiber skins for ultra-low distortion. The sophisticated 28mm diamond-coated beryllium tweeter, derived from the flagship M9, delivers detailed highs up to 50kHz. The midrange and woofers ensure crystal-clear reproduction and powerful, undistorted bass.
S3 2023: Redefining Performance

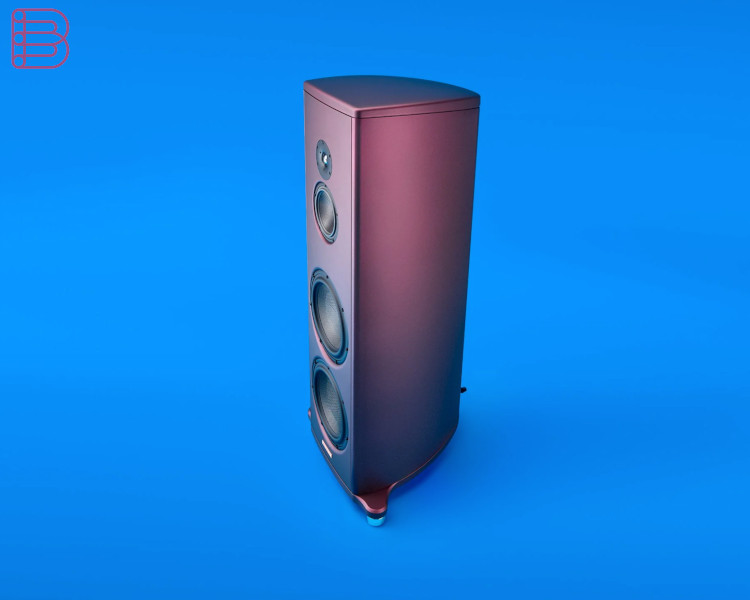

The S3, launched in 2023, draws heavily from the technological advancements of Magico’s flagship M9. The redesigned S3 surpasses its predecessor, the S3 Mk II, with a new enclosure, drivers, and coupling system.
Enclosure
The S3’s enclosure comprises four extruded aluminum panels, a machined top plate, and a robust baseplate with a new 3-point outrigger system. This design enhances rigidity, lowers the center of gravity, and reduces resonance by 30%, ensuring pure sound reproduction. The Klippel NFS and 3D laser interferometry optimized the enclosure’s acoustic performance, making it a class leader.
Performance
The S3 delivers unmatched clarity and dynamics, shattering performance boundaries for its category. Its refined aesthetics and fortified construction make it a standout in both form and function.
S2: Compact Powerhouse
The S2 is Magico’s most compact three-way loudspeaker, weighing 132 pounds yet delivering exceptional performance. Designed to exceed expectations, it combines advanced technology with a sleek form factor.
Enclosure
Crafted from a single-piece extruded aluminum enclosure—the largest Magico has produced—the S2 maximizes rigidity and minimizes diffraction. A full-length vertical brace and advanced damping strategies ensure the enclosure remains sonically neutral. The Polytec Laser Vibrometer and 3D modeling eliminated potential resonance, resulting in a cabinet that enhances sonic purity.
Drivers
The S2 features a 5-inch midrange with a 75mm voice coil, two 7-inch woofers, and a 28mm diamond-coated beryllium tweeter. All drivers utilize Gen 8 Nano-Tec cones and third-generation chassis, delivering a maximum SPL of 109dB at 55Hz and pristine highs up to 50kHz.
Finishes
Available in six Softec finishes (rich, durable, and smooth) and six High Gloss finishes (polished with a clear top coat), the S2 combines aesthetic elegance with sonic excellence.
S-Sub: Deep Bass Extension
The S-Sub complements the S-Series with powerful, controlled bass. Built on the same principles as the S5 and S3, it integrates seamlessly into high-performance audio systems, delivering authoritative low frequencies without compromising clarity.
SCC: Home Theater Excellence

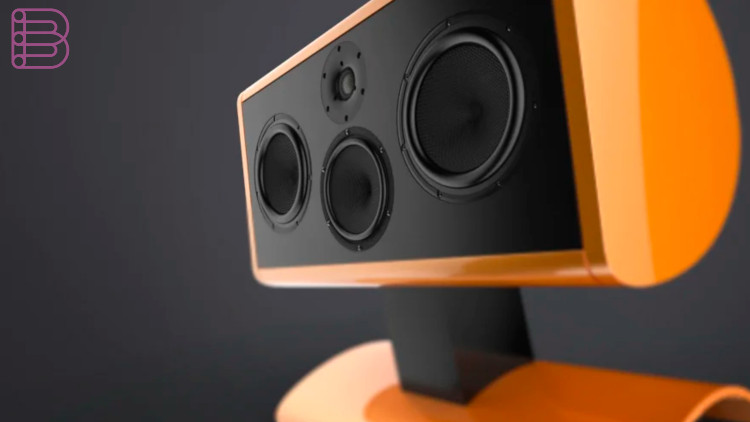

The SCC (S-Series Center Channel) brings Magico’s signature resolution and clarity to home theater systems. Designed for accurate vocal reproduction, it handles dynamic demands from subtle dialogue to explosive soundtracks.
Enclosure and Drivers
The SCC’s curvilinear enclosure, made from 16-inch diameter extruded aluminum with ½-inch thick walls, mirrors the S5’s rigidity. Its four-driver, three-way configuration includes two 7-inch woofers, a 6-inch Nano-Tec midrange, and a diamond-coated beryllium tweeter, ensuring precise sound reproduction.
Design
Using advanced computer-aided design and customized software, the SCC minimizes diffraction and internal resonance, delivering emotional engagement and clarity for cinematic experiences.
