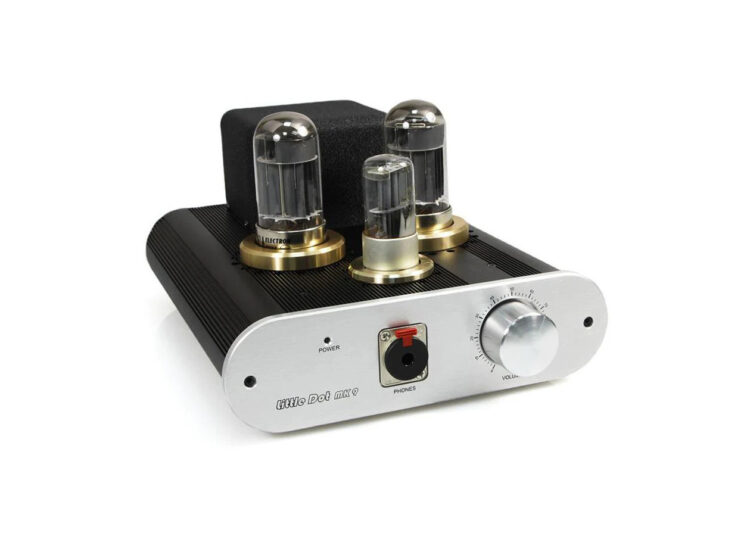

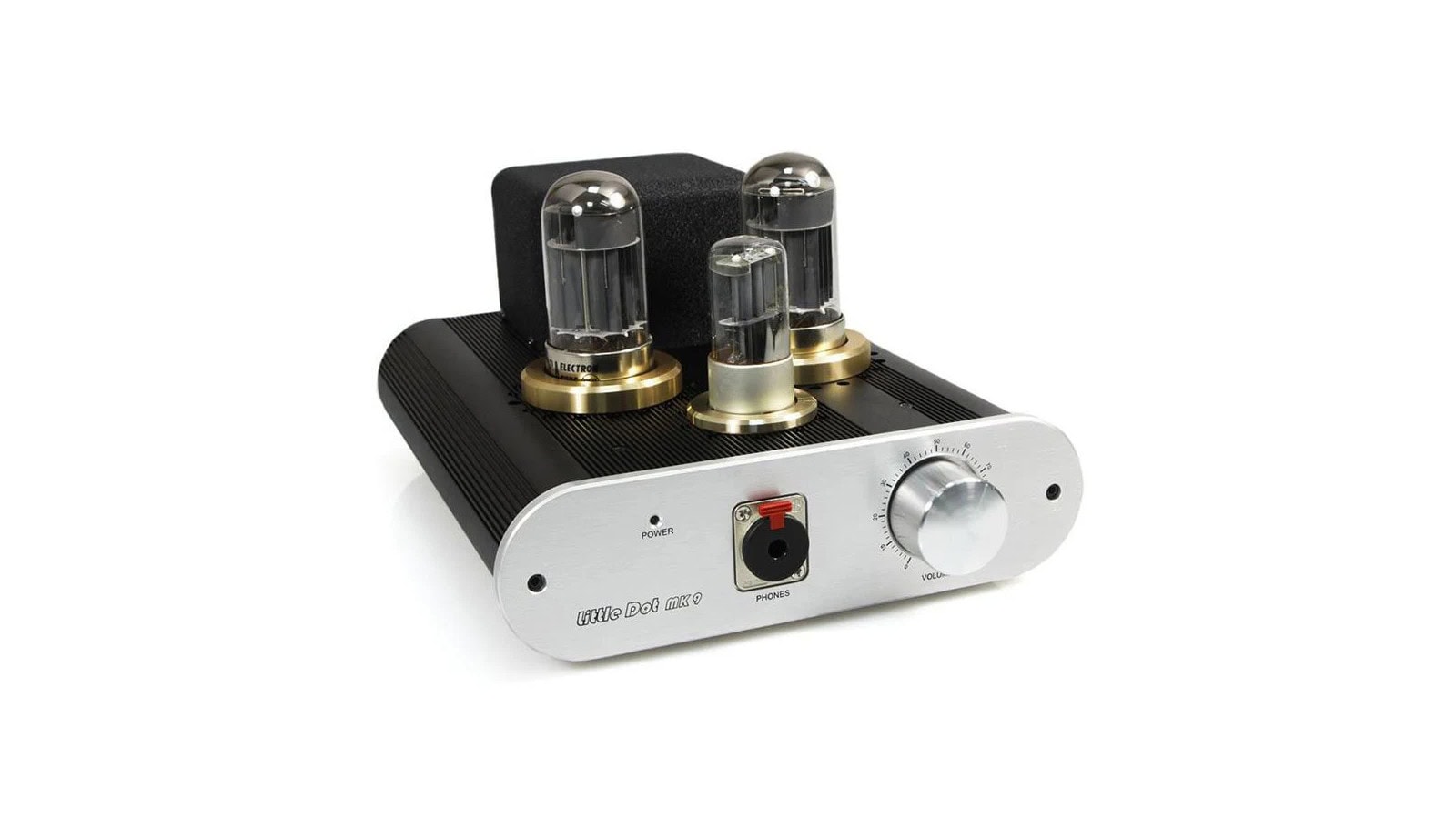

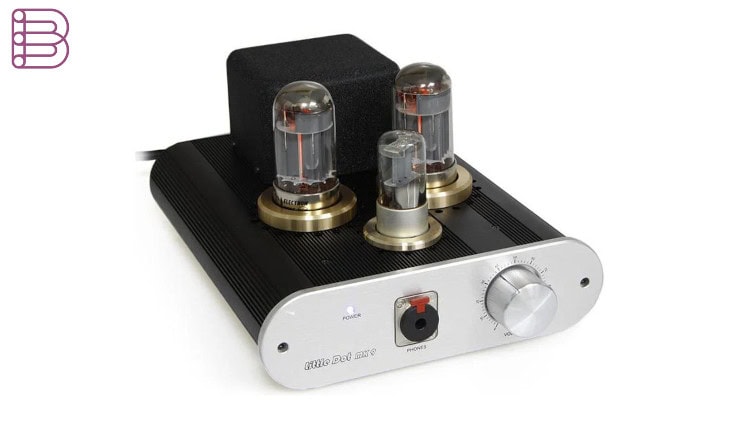

The Little Dot MK9 headphone amplifier stands out in the audio landscape for its unique design and impressive performance. Utilizing electronic tube technology, this amplifier not only pays homage to classic audio engineering but also delivers exceptional sound quality for audiophiles and casual listeners alike.
A Closer Look at the Design and Functionality
The MK9 employs a sophisticated tube amplification circuit, featuring three tubes: the 6N9P for the input stage and two 6080 tubes configured for output. This setup allows the MK9 to operate in a single-ended push-pull (SEPP) mode, a rarity in modern headphone amplifiers. The input signal is sourced from devices such as CD players or decoders, and the amplified output is designed specifically to drive headphones with clarity and depth.
One of the standout features of the MK9 is its RCA output, which allows users to connect additional amplifiers if desired. This versatility ensures that the MK9 can fit seamlessly into various audio setups, enhancing the listening experience across different devices.
Exceptional Sound Quality
The MK9’s design is not just about aesthetics; it delivers impressive audio performance as well. The output dynamic range is significantly larger compared to traditional cathode output circuits, with an undistorted swing of up to 30Vp-p. This capability allows for deeper low-frequency responses, resulting in a more solid sound. Additionally, the amplifier provides greater transparency in the mid to high frequencies, making vocals and instruments more lifelike and engaging.
To achieve a balanced DC level when using a direct-coupled configuration, the MK9 requires a complex symmetrical power supply. To maintain stability in the circuit operations, it incorporates a “zero servo tracking circuit.” This advanced feature helps ensure that performance remains consistent across various listening conditions.
Safety and Protection Features
Understanding the importance of safety, the MK9 is equipped with a relay protection circuit along with specialized output protection chips. These features safeguard the amplifier and connected headphones from potential damage, allowing users to enjoy their music without worry.
Premium Quality Tubes for Superior Sound
At the heart of the MK9 are the output tubes, sourced from the United States’ RCA company. These tubes are newly produced but are inspired by a 50-year-old design known for its outstanding sound quality. This attention to detail in tube selection contributes significantly to the overall auditory experience, making the MK9 a worthy investment for those seeking high-fidelity sound.
