In 1987, Acoustic Energy redefined the loudspeaker landscape with the introduction of the AE1, a compact monitor that delivered studio-grade performance with unprecedented dynamic range, clarity, and bass extension. This small but mighty speaker challenged the norms of its era, becoming a legend in both recording studios and audiophile systems. Now, to celebrate four decades of audio excellence, Acoustic Energy proudly unveils the AE1 40th Anniversary Edition, blending cutting-edge engineering with the timeless design that made the original an icon.
A Legacy of Innovation
The original AE1 was a bold departure from the bulky, inefficient loudspeakers of its time. Its compact form, paired with exceptional sound quality, set a new standard for what a small speaker could achieve. Reimagining this design classic for the modern era was no small feat. With original components long out of production, Acoustic Energy started from scratch while staying true to the AE1’s signature sound. The challenge was to honor the expectations of devoted AE1 fans while appealing to a new generation of listeners.
Faithful Yet Modernized Design
The AE1 40th Anniversary Edition retains the core elements that defined the original: a high-mass, high-stiffness, straight-sided aluminium cone woofer driven by a high BL motor, a metal dome tweeter, and a compact, robust cabinet with twin front ports. However, subtle modernizations enhance performance without compromising the speaker’s heritage.
Newly Engineered Tweeter
A completely redesigned tweeter was crafted to match the performance of the original. Featuring a larger 29mm voice coil and an aluminium dome, the new tweeter offers lower distortion through a greater radiating area compared to standard 25mm domes. Its ultra-shallow dome profile ensures excellent bandwidth, while a large rear chamber keeps fundamental resonance low and absorbs rear energy. Like its predecessor, the tweeter is ferrofluid-cooled and damped for superior power handling, dynamics, and reduced thermal compression.
Reimagined Woofer
The new woofer adheres to the original’s characteristic sound while incorporating modern advancements. Slightly larger to meet contemporary 125mm standards, the woofer delivers higher efficiency, lower distortion, and greater air movement. The straight-sided aluminium cone, formed through a rare “spinning” process, is coated with a thick, hard-anodized ceramic layer on both sides, creating a robust sandwich structure. A thermally conductive aluminium voice coil and a powerful motor structure ensure exceptional dynamics and power handling. A key upgrade is the addition of an aluminium shorting ring in the motor, significantly reducing distortion from voice coil inductance variations. Unlike the original’s 7-ohm design, the new woofer’s 5-ohm DCR makes the AE1 easier to drive, requiring less amplifier power.
Refined Crossover and Cabinet
Drawing inspiration from the luxurious “Signature” version of the original AE1, the crossover employs low-order filters and high-quality components for a natural, dynamic sound optimized for home audio environments. The result is a warm midrange, robust bass for its size, forgiving high frequencies, and exceptional punch across its range.

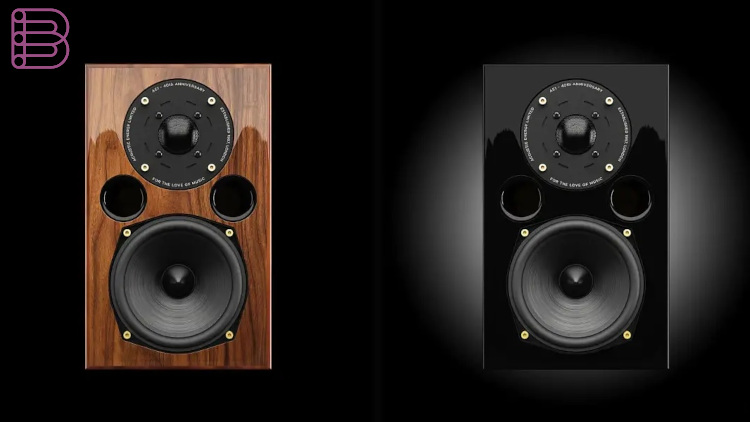

The cabinet, finished in ten layers of high-gloss black paint or walnut wood veneer, is a work of art. Upgraded with Acoustic Energy’s proprietary RSC material, successfully used in models from the Corinium to the 300 series, the cabinet achieves the stiffness of the original concrete-lined design without production drawbacks. Re-tooled twin front ports with internal flares reduce distortion and enhance bass output, ensuring the cabinet’s tuning matches the AE1’s iconic sound.
A Speaker for All Settings
The AE1 40th Anniversary Edition delivers unparalleled performance, quality, and value, making it equally at home in a high-end audio setup or a professional recording studio. Its clean, uncluttered lines and thrilling sound uphold the legacy that Acoustic Energy owners have cherished for 40 years.
Conclusion
With the AE1 40th Anniversary Edition, Acoustic Energy has masterfully blended heritage and innovation. This loudspeaker is not just a tribute to the past but a bold step into the future, offering audiophiles and professionals alike a compact monitor that punches well above its weight. Whether you’re a long-time AE1 enthusiast or a newcomer to the brand, this anniversary edition is poised to captivate with its timeless design and modern performance.
