Dynavector DV 10XA-H/L Phono Cartridge

Finn de Kroon by Finn de Kroon
June 24, 2025
Reading Time: 3 mins read
0
Dynavector-DV-10XA-H/L-Phono-Cartridge

RELATED POSTS

Epson Announces EH-LS9000B

AVID HiFi Evo Two Floor-standing loudspeaker

XACT Audio N1 Network Switch

Since its inception in 1978, the Dynavector 10X series has established itself as a legendary name in the world of high-fidelity audio. Renowned for its exceptional performance and innovative design, the 10X series has continually evolved to meet the demands of discerning audiophiles. The latest addition, the DV 10XA-H/L, exemplifies decades of engineering excellence, pushing the boundaries of what a high output Moving Coil (MC) cartridge can achieve.

A Legacy of Innovation and Recognition

The Dynavector 10X series made an immediate impact upon release, earning the prestigious Design and Engineering Award at the Chicago Consumer Electronics Show (CES) in both 1978 and 1981. Its distinctive red body has become a symbol of quality and reliability, captivating audiophiles worldwide. Over the years, the series has undergone significant enhancements, including:

  • 2003: Introduction of a solid aluminum head block for increased rigidity, providing a more secure platform for mounting.
  • 2018: Replacement of the traditional elliptical stylus with the advanced “Shibata III” line contact stylus, improving tracking and high-frequency response.
  • 2025: Deployment of a groundbreaking magnetic circuit utilizing Dynavector’s proprietary “Special Magnetic Annealing” technology, elevating performance to new heights.

The 2025 Breakthrough

The core of any MC cartridge is its magnetic circuit. For the 10X series, Dynavector has developed a proprietary process called “Special Magnetic Annealing”. This involves carefully controlling factors such as annealing temperature, environment, duration, and heating/cooling rates to optimize the magnetic properties of pure iron used in the circuit.

This innovative process results in a magnetic circuit that delivers:

  • Expansive, resonant sound with minimal distortion
  • Unrivaled resolution and clarity
  • Smooth, articulate playback that surpasses expectations for its class

Dynavector-DV-10XA-H:L-Phono-Cartridge-1

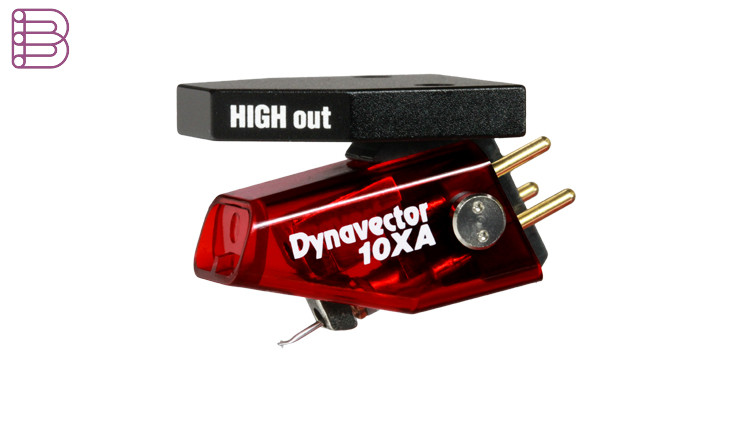

The 10XA-H

The DV 10XA-H stands out as a high output MC cartridge that combines the sonic advantages of moving coil technology with the convenience typically associated with Moving Magnet (MM) cartridges. Thanks to Dynavector’s unique coil winding technology, it employs ultra-fine wire wound multiple times around the coil bobbin, resulting in an output voltage of 2.8mV.

Key Features:

  • High output voltage: Eliminates the need for a step-up transformer or dedicated MC phono stage
  • Compatibility: Can be connected to a standard MM phono input (47kΩ load) or a dedicated MC input (recommended load impedance ≥ 1,000Ω)
  • Design: Features a robust machined aluminum head block for secure mounting

The 10XA-L

For those seeking the purest MC experience, the DV 10XA-L offers a low output voltage of 0.5mV, allowing for optimal compatibility with a wide range of step-up transformers and high-gain head amplifiers. This model provides the listener with an authentic, detailed reproduction of the vinyl groove, revealing nuances often masked in higher-output cartridges.

Key Features:

  • Low output voltage: Ensures faithful reproduction of the original recording
  • Recommended load impedance: 100Ω or higher
  • Design: Shares the same high-quality construction as the 10XA-H, ensuring durability and consistent performance

Advanced Stylus Design Shibata Type III

The 10X series is equipped with a Shibata Type III stylus, renowned for its exceptional high-frequency response and superior groove tracking capabilities. The stylus tip’s design allows it to read more of the groove walls, resulting in:

  • Higher resolution playback
  • Enhanced detail retrieval
  • Reduced record wear

The cantilever is crafted from lightweight, rigid aluminum pipe, further improving tracking accuracy and longevity.

Magnetic Field Optimization: Neodymium Magnets and Softened Magnetic Field

To maximize magnetic flux while minimizing distortion, Dynavector employs neodymium magnets combined with proprietary “Softened Magnet” technology. This approach:

  • Reduces distortion and harshness often associated with rare earth magnets
  • Produces a clean, well-separated soundstage
  • Enhances output power without compromising fidelity

Broad Compatibility and Robust Construction

The 10X series features a machined aluminum head block that ensures a secure, rigid connection to the tonearm. With a compliance of 12mm/N and a total weight of 7.5g, the cartridges are compatible with most tonearms on the market, offering both flexibility and reliability for a wide range of setups.

Tags: DV 10XA-H/LDynavectorPhono Cartridge
